Description
This diesel driven generator is fitted with electric start function. The silent canopy makes it ideal for domestic applications due to reduced noise levels. This is ideal for sensitive electronic equipment and is equipped with Automatic Voltage Regulation as standard. The onboard circuit breaker ensures overload protection. This generator offers excellent reliability and durability.

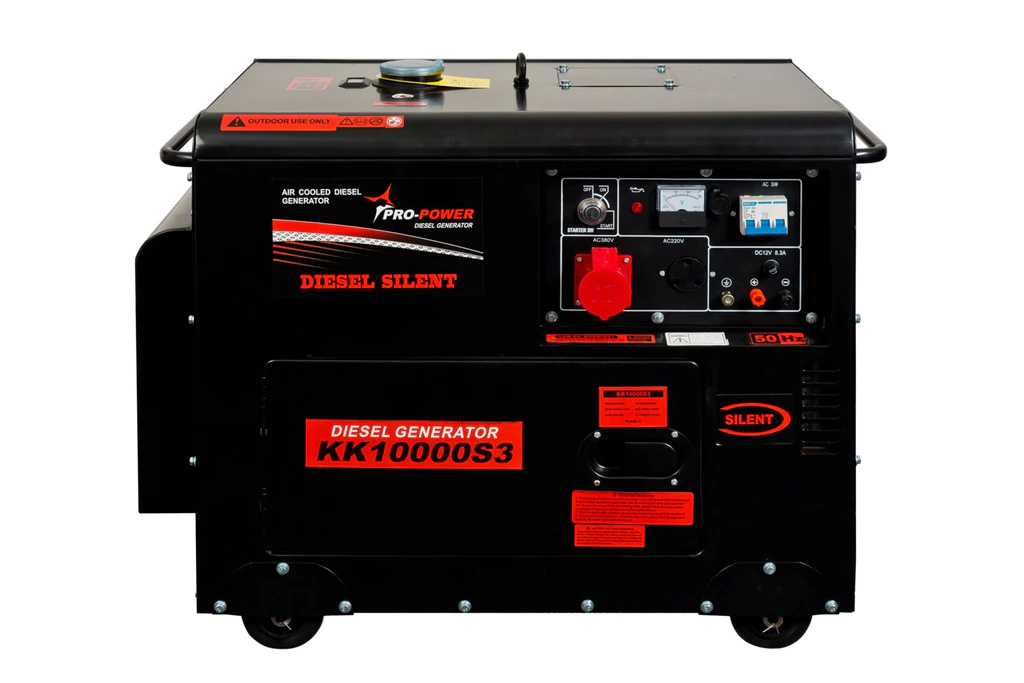

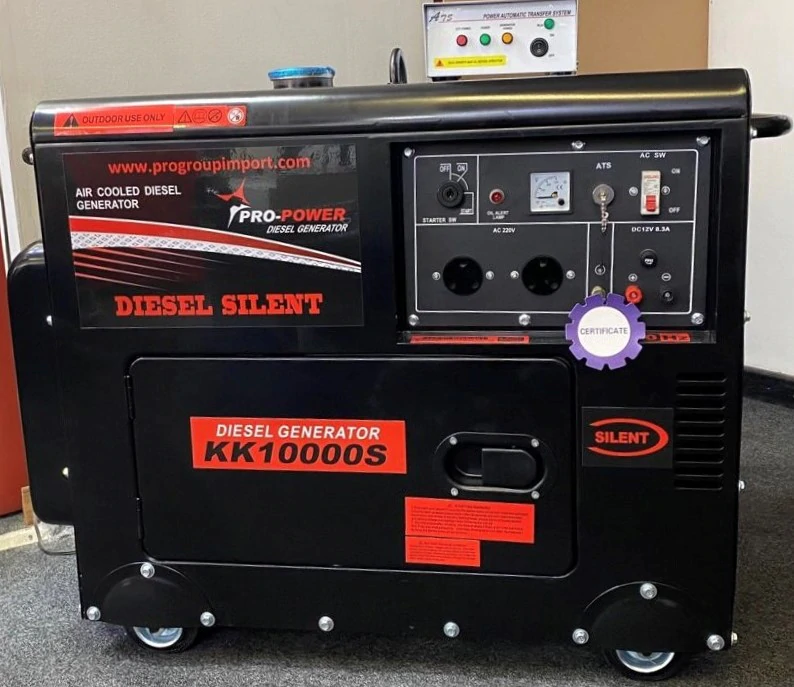

Diesel Silent Generator 8Kw (10Kva) 16Lt with ATS Panel Switch
Single phase and 3 Phase
| Diesel Generator | ||
| Generator Model | KK10000S | KK10000S3 |
| Rated Power | 8kw/10kvA | 8kw/10kva |
| Max. Power | 7.5kw/9.3kva | 7.5kw/9.3kva |
| Rated voltage | 220v | 380V |
| Phase | single phase | 3 phase |
| Power Factor cos | 1 | 0.8 |
| Rated frequency | 50hz | |
| Excitation Transistorized | self-excitation brush with AVR | |
| DC output | 12V / 8.3A | |
| Fuel Tank Capacity(L) | 16 | |
| Engine Model | diesel 195 | |
| Engine Type | air-cooled,1-cylinder | |
| Starting system | electric start | |
| Displacement (ml) | 633 | |
| Compression ratio | 19.5:01 | |
| Rated power (KW) | 9 | |
| Rated Rotation Speed(rpm) | 3000 | |
| Fuel type | diesel | |
| Lube type | SAE10W30(CD grade above) | |
| Running time(hr) | 7 | |
| Noise (7m) dB(A) | 72 | |
| Packing size(general type) | 950*600*800(mm) | |
| G.W.(general type) | 175 (Kg) | |
Additional information
| Size | Single Phase, 3 Phase |
|---|
