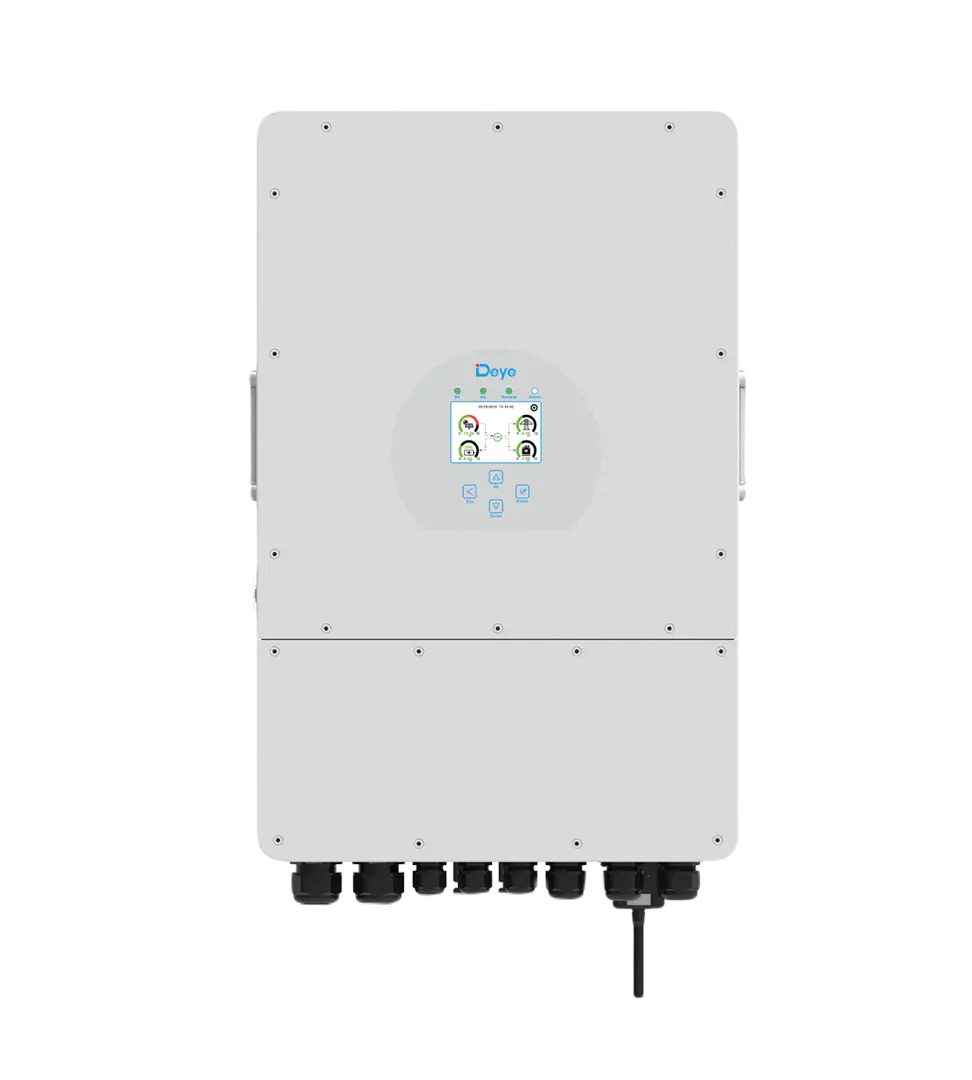

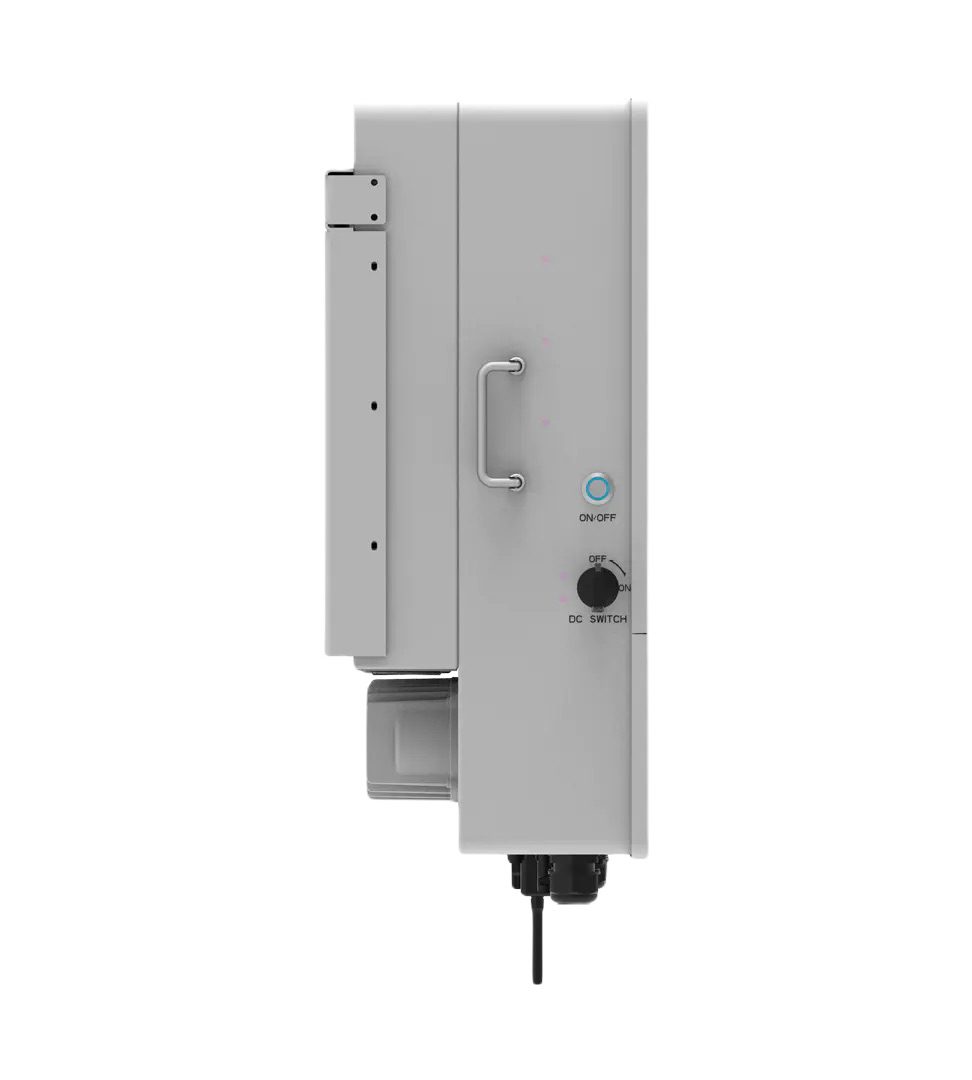

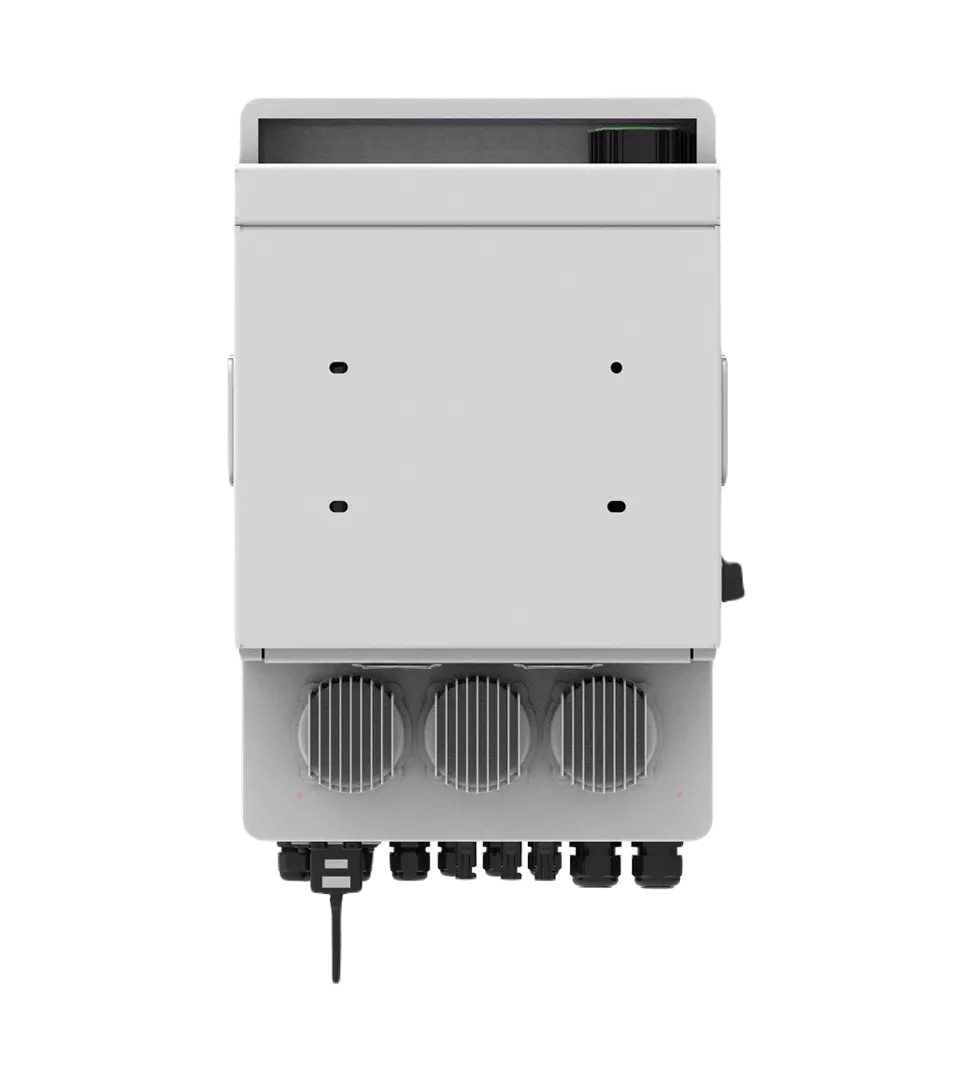

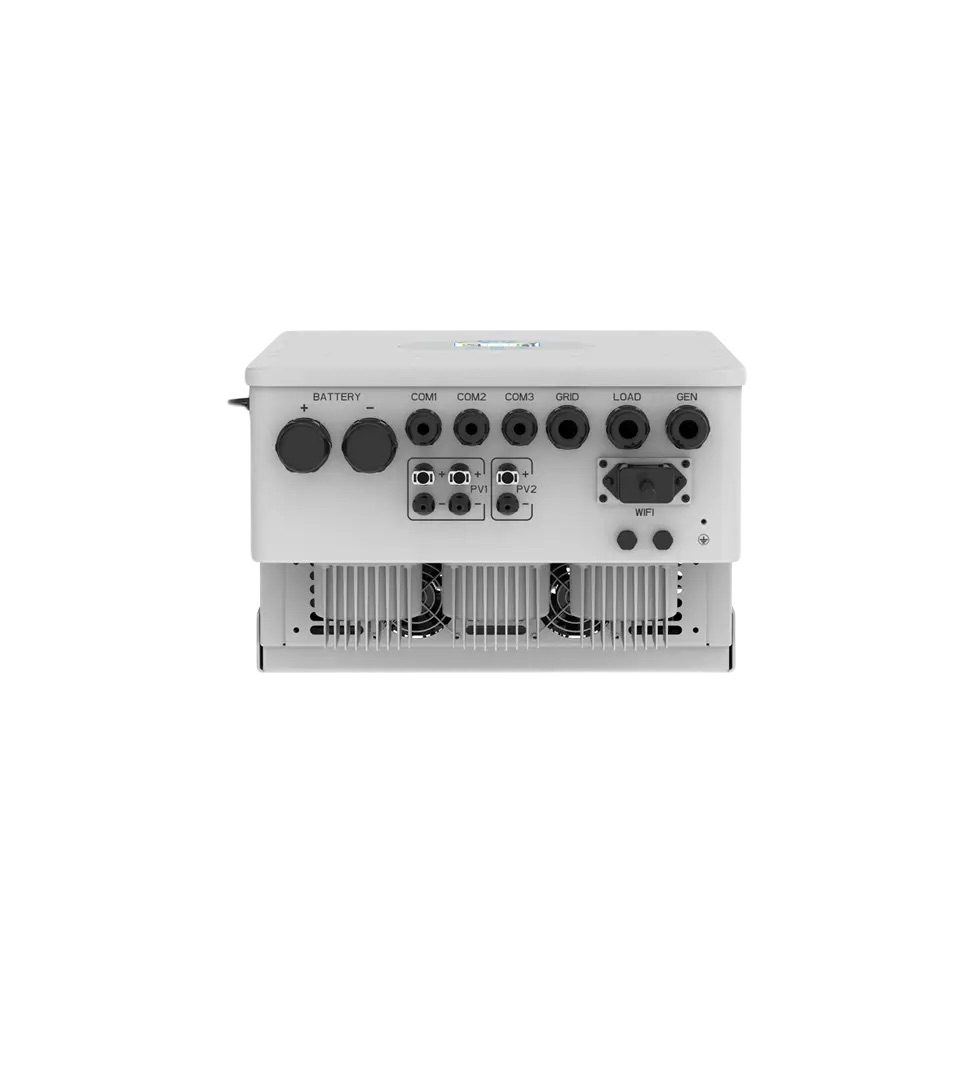

Deye 12kW Three Phase Hybrid Inverter

Deye 12KW 3 Phase Hybrid Inverter

Includes:  Wi-Fi Dongle + BMS Communication Cable

Higer yields.

• Improve self-consumption ratio up to 80%, reducing your electricity bill.
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
• Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

• LCD Touch screen and buttons, easy operation.
• Compatible with lithium-ion battery and lead acid battery.
• Web browser and mobile App monitoring supported.

Reliable.

• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
• Support store energy from DG when needed, ensure the system working within 7*24H.
• IP65 protection degree, adapt to indoor and outdoor using.
• Automatically switch from on-grid to off-grid mode within 5ms.
• Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

• Programmable charging and discharging schedule.
• Both wind turbines and solar panels can be connected as DC input power.
• Max. 16 units can be paralleled for higher system power.
• Retrofitting of existing solar system to energy storage system.

Features:

• 100% unbalanced output, each phase Max. output up to 50% rated power.
• 48V low voltage battery, transformer isolation design.
• 6 time periods for battery charging/discharging.
• Max. charging/discharging current of 240A.
• Frequency droop control.
• DC couple and AC couple to retrofit existing solar system.
• Support storing energy from diesel generator

Battery Input Data

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 240A
• Max. Discharging Current (A): 240A
• Charging curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

• Max. DC Input Power (W): 15600W.
• PV input Voltage (V): 550V (150V-800V).
• MPPT Range (V): 200-650V.
• Start-up Voltage (V): 160V.
• PV Input Current (A): 25A + 125.5A.
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 2+1.

AC Output Data

• Rated AC Output and UPS Power (W): 12000W
• Max AC Output Power (W): 13200W
• Peak Power(off-grid): 2 times of rated power, 10 S.
• AC Output Rated Current(A): 18A
• Max.AC Current(A): 27A
• Max Continuous AC Pass-through(A): 50A.
• Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
• Grid Type: Three Phase
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

• Operating Temperature Range ( C ): -25—60 C , >45 C Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 37
• Size (mm): 422W X 685H X 281mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years
