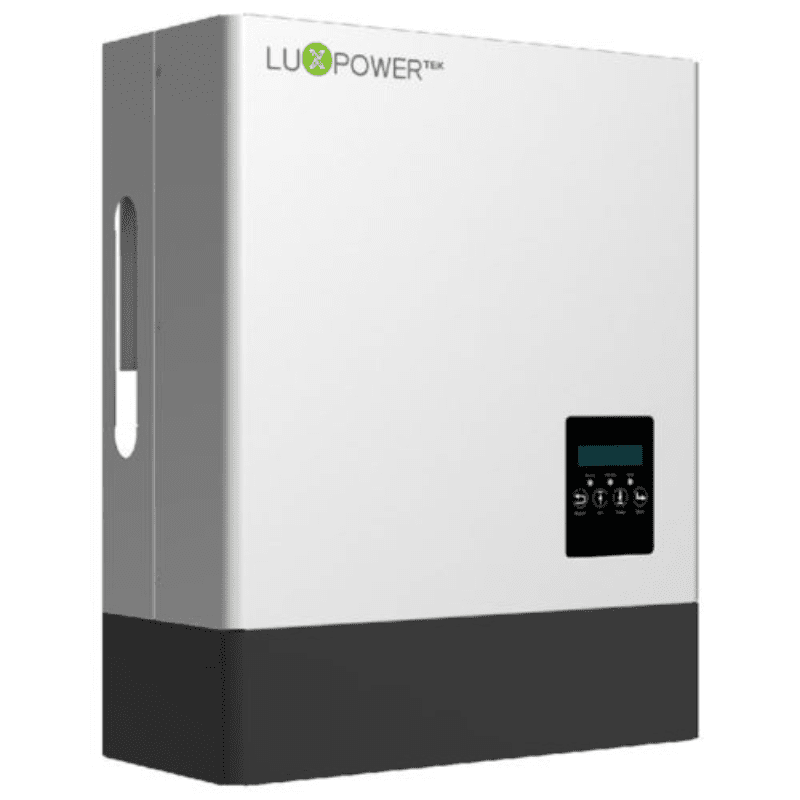

Lux Power 5kW Hybrid Single Phase

Solar Input
• Maximum DC Input Power: 8000W
• Nominal DC Input Voltage: 360VDC
• DC Input Voltage Range: 100VDC-550VDC
• MPPT Voltage Range: 120VDC-500VDC
• Start Voltage: 140VDC
• Number of MPP Trackers: 2
• Maximum DC Input Current: 12.5A / 12.5A

Battery Input / Output
• Compatible Battery Type: Lithium-ion / Lead-Acid
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC – 60VDC
• Maximum Charge / Discharge Current: 80A / 80A
• Maximum Charge / Discharge Power: 5000W / 5000W
• Charging Curve: 3 Stages

AC Input / Output
• Nominal AC Output Power: 5000W
• Nominal AC Output Current: 25A
• Nominal AC Voltage: 230VAC (180VAC-270VAC)
• Nominal AC Frequency: 50Hz / 60Hz (45Hz-55Hz / 55Hz-65Hz)
• Power Factor: >0.99 @ Rated Power 0.8 Lagging – 0.8 Leading Adjustable

Environment Limit
• Ingress Protection: IP65
• Relative Humidity: 0% to 100%
• Operating Temperature Range: -25°C to +60°C
• Operating Altitude: <2000m
• Communication: RS485 / WIFI / CAN
