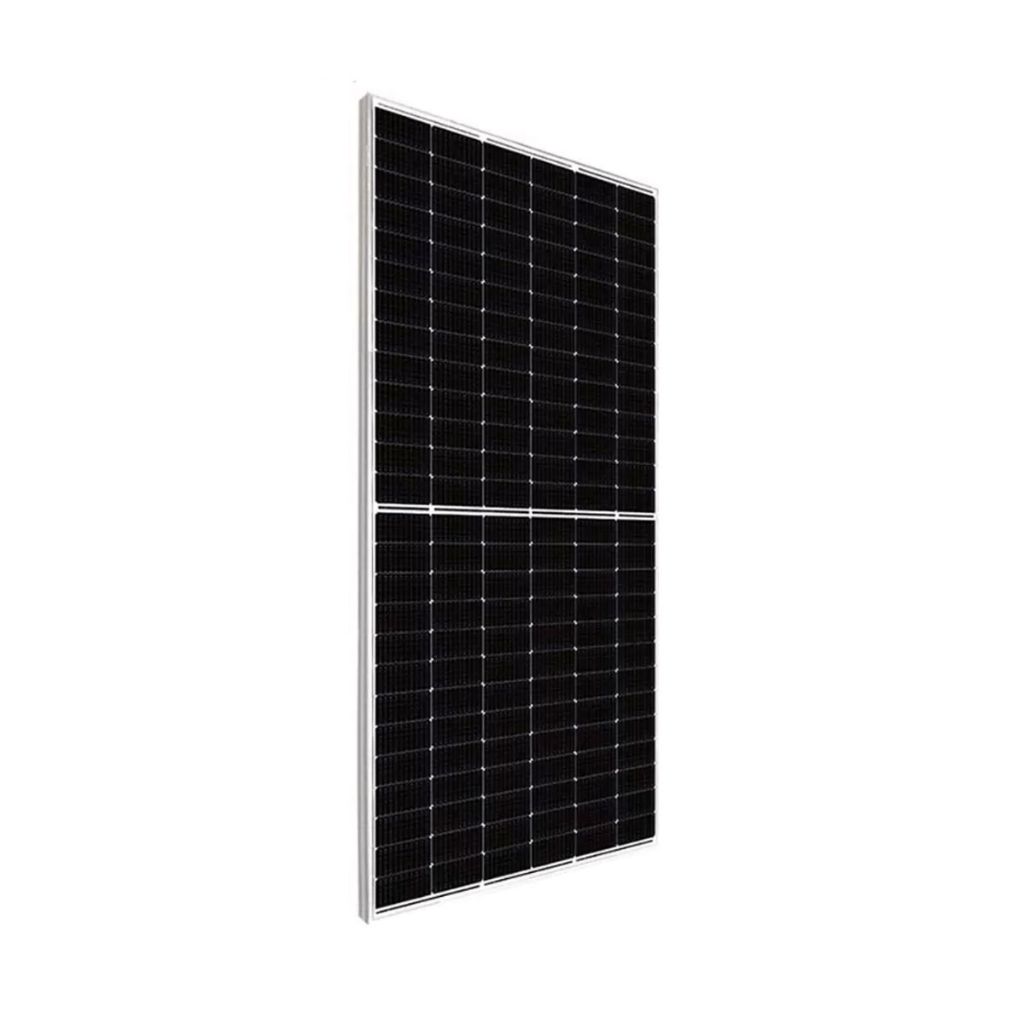

JA Solar 465w Mono PV Module

Features

– High output power
– Less shading effect
– Lower temperature coefficient
– Better mechanical loading tolerance
– Please note this module has Silver Frame and White Back-sheet
– Comes supplied with MC4 connectors

Specifications

– Cell: Mono
– Number of Cells; 144(6×24)
– Weight; 27.3 kg
– Dimensions:  2278±2mm x 1134±2mm x 30±1mm
– Junction Box: IP68, 3 diodes
– Connector:  QC 4.10-351 / MC4-EVO2A
– Rated Maximum Power: 550W
– Open Circuit Voltage: 49.90
– Maximum Power Voltage: 41.96
– Short Circuit Voltage: 14.00
– Maximum Power Current: 13.11
– Module Efficiency: 21.3
